Overview of i-ARM Database Schema

The i-ARM solution uses a structured and scalable relational data model implemented on Azure SQL Database to support its records management and compliance automation features. The schema is designed to store and interrelate information about files, metadata, labels, sensitive content, user actions, and source systems.

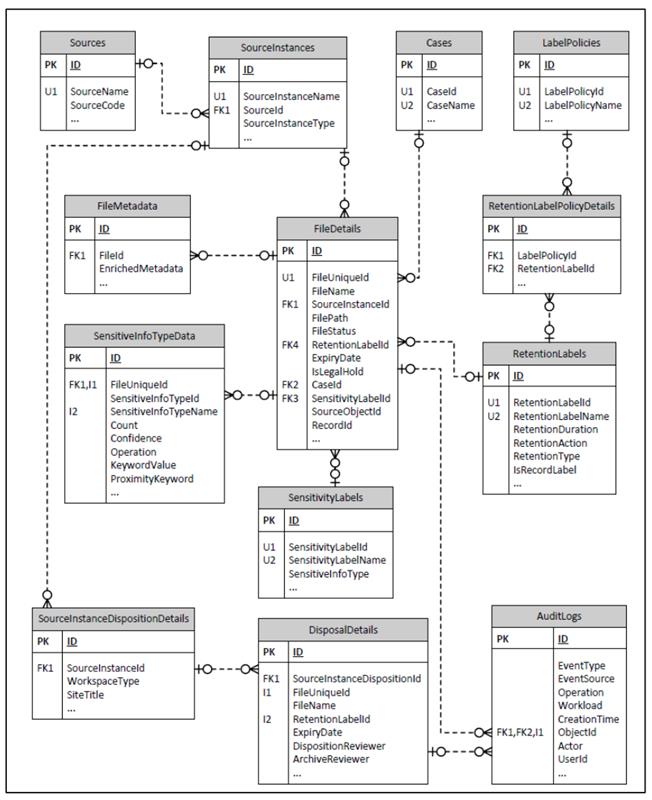

Logical Data Model:

The section below shows the generalised data model of i-ARM system that primarily makes use of the SQL Azure database for storing its configurations and operational data.

The design shows the schema of underlying key tables used by i-ARM and their relationship with different tables in the system. The database is normalized with third normal form standard to achieve data integrity, efficient storage, flexibility as well as the query performance for the reporting.

The design shows the schema of underlying key tables used by i-ARM and their relationship with different tables in the system. The database is normalized with third normal form standard to achieve data integrity, efficient storage, flexibility as well as the query performance for the reporting.

Data security and compliance:

  • Due to the use of Azure SQL database offering as the backend of i-ARM, the Data at rest is encrypted using Transparent Data Encryption (TDE).
  • Role-based access control (RBAC) ensures that users have access only to the data they need.


Core Entities

  1. FileDetails

    Central to the schema, this table captures metadata for each file ingested into the system. It links to source instances, sensitivity and retention labels, and includes flags for legal hold, file status, and disposition tracking.

  2. DisposalDetails

    Tracks the lifecycle events of files, such as disposition and archival reviews. It ensures compliance with retention schedules by linking to labels and reviewers.

  3. SensitiveInfoTypeData

    Stores insights from data scans, capturing the presence of sensitive information types (e.g., PII) within files, along with confidence levels, matching keywords, and operations detected.

  4. RetentionLabels & LabelPolicies

    These tables define retention rules and associate them with policies. Each label includes attributes such as retention duration, action, and type (e.g., delete, retain, review).

  5. SensitivityLabels

    This defines classification labels applied to content based on its sensitivity. It includes mappings to sensitive information types.

  6. Sources & SourceInstances

    Define the origin of content (e.g., SharePoint, File Share) and the specific instances or containers within those sources, enabling source-level filtering and policy application.

  7. AuditLogs

    Captures user and system activity related to files and labels, facilitating traceability and compliance audits.

  8. FileMetadata

    Provides a structure to store enriched metadata for files to enhance search, classification, and review.

  9. SourceInstanceDispositionDetails

    Describes the characteristics of the content source at a site or workspace level, including type and title, to support context-aware retention decisions.

Data Relationships and Integrity

The i-ARM database schema is designed with a strong emphasis on referential integrity, relational traceability, and query performance, ensuring that all data elements are interconnected and consistently validated throughout the lifecycle of records.

  1. Referential Integrity Through Foreign Keys

Most major tables include foreign key (FK) constraints to ensure that records reference only valid and existing entities:

  • FileDetails uses foreign keys to link to SourceInstances, RetentionLabels, SensitivityLabels, and Cases, ensuring that each file’s classification, origin, and compliance context is properly referenced.
  • DisposalDetails connects to both FileDetails and SourceInstanceDispositionDetails to maintain a clear and traceable record of what was reviewed or disposed of, by whom, and under what policy.
  • SensitiveInfoTypeData uses a composite key with FileUniqueId and SensitiveInfoTypeId, ensuring tight binding between sensitive content scans and the specific files they relate to.
  1. Indexing for Efficient Lookups

The schema strategically uses unique constraints and indexed identifiers like FileUniqueId, RetentionLabelId, SensitivityLabelId to:

  • Enable fast filtering and lookups during file reviews, audits, and data retention processing.
  • Support scalable and performant operations across millions of files, especially when performing compliance checks or auto-labeling tasks.
  1. Normalization for Maintainability

The schema follows principles of database normalization to minimize redundancy:

  • Labels, policies, and sensitivity definitions are centralized and linked to multiple files or sources, making it easier to update global settings without data duplication.
  • Metadata is separated into dedicated tables (FileMetadata, AuditLogs, SensitiveInfoTypeData), supporting flexible enrichment and asynchronous processing.
  1. Auditability and Traceability

The AuditLogs table plays a crucial role in enabling transparency and governance:

  • Tracks who performed what action (e.g., labeling, review, access), when, and from where.
  • Supports compliance and forensic reviews by linking actions to specific files and users.
  1. Hierarchical Source Structuring

The combination of Sources and SourceInstances introduces a two-level abstraction for file origins:

  • Sources define the broad category (e.g., SharePoint, OneDrive, Network Drive).
  • SourceInstances specify the granular location (e.g., a specific site or particular file share), enabling policy scoping, data segregation, and source-based filtering.
